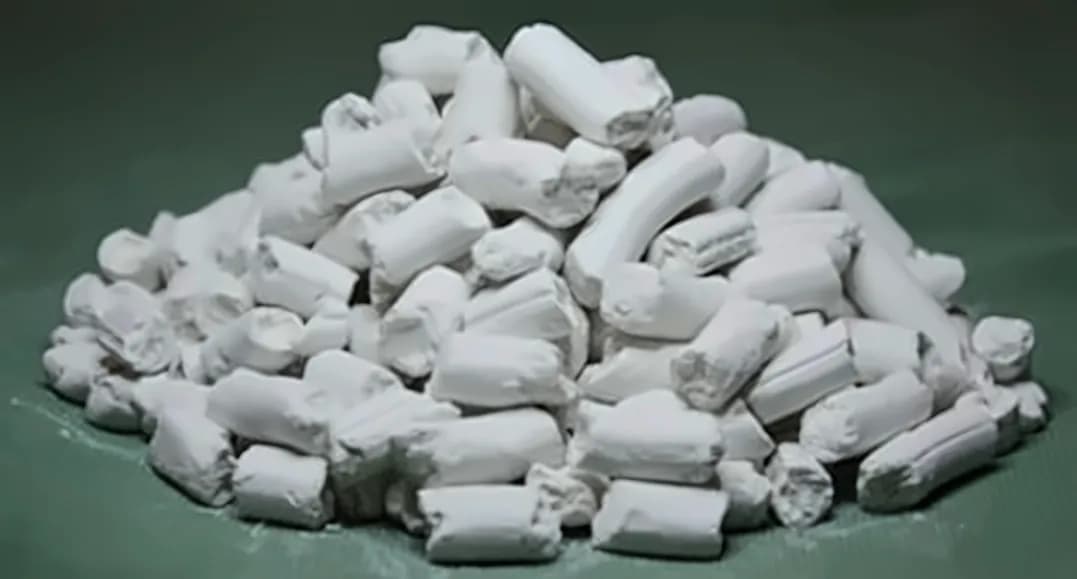

AKF-78
Primary enriched kaolin for the paper industry, ceramics and glazes.
Also used in
- Cables
- Plastics
- Electrical insulators
- Paints
Angren · Tashkent Region · Uzbekistan
Central Asia’s only wet-process kaolin plant
Angren Kaolin produces primary enriched kaolin in three grades for ceramics, sanitary ware, tile, paper, cables, plastics and rubber goods. Quality management is certified to ISO 9001:2008.
- Whiteness R457, AKF-78
- 78 %
- Al₂O₃, AKF-78 and AKS-30
- 28–32 %
- Residue over 45 µm, AKF-78
- 0.05 %
- Quality management
- ISO 9001:2008
Explainer
What kaolin is and where it goes
A 46-second film on where the clay comes from, how the world uses it and what Angren Kaolin makes from it.
Products
Which grade fits your product?
Choose what you manufacture. The grades Angren Kaolin produces for it are highlighted in the cards and in the specification table.
Select an application to see the matching grade.

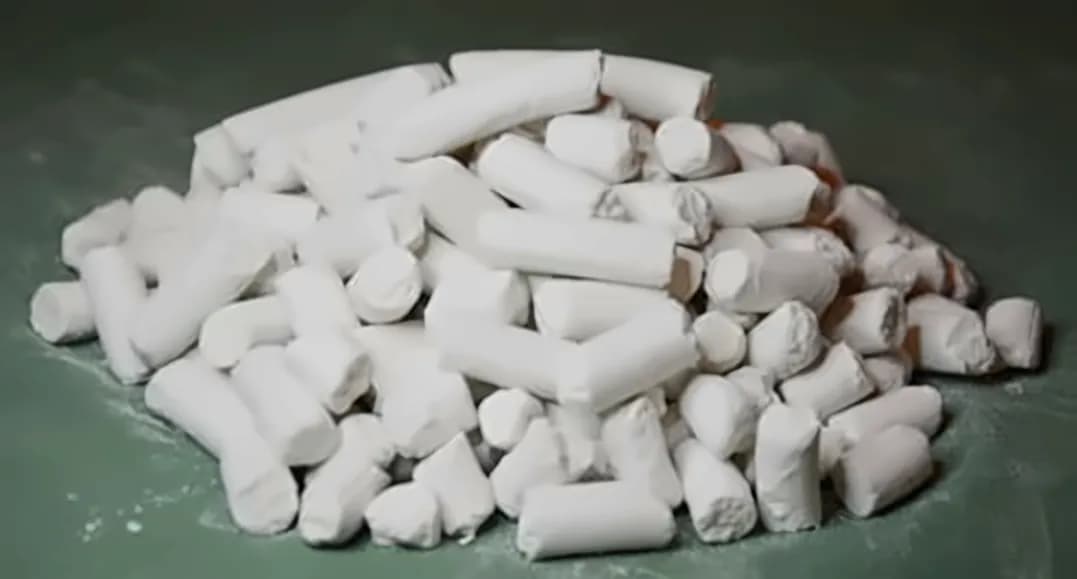

AKS-30
Primary enriched kaolin for faience, ceramic products and sanitary ware.
Also used in
- Ceramic tile
- Refractories
- Chamotte brick

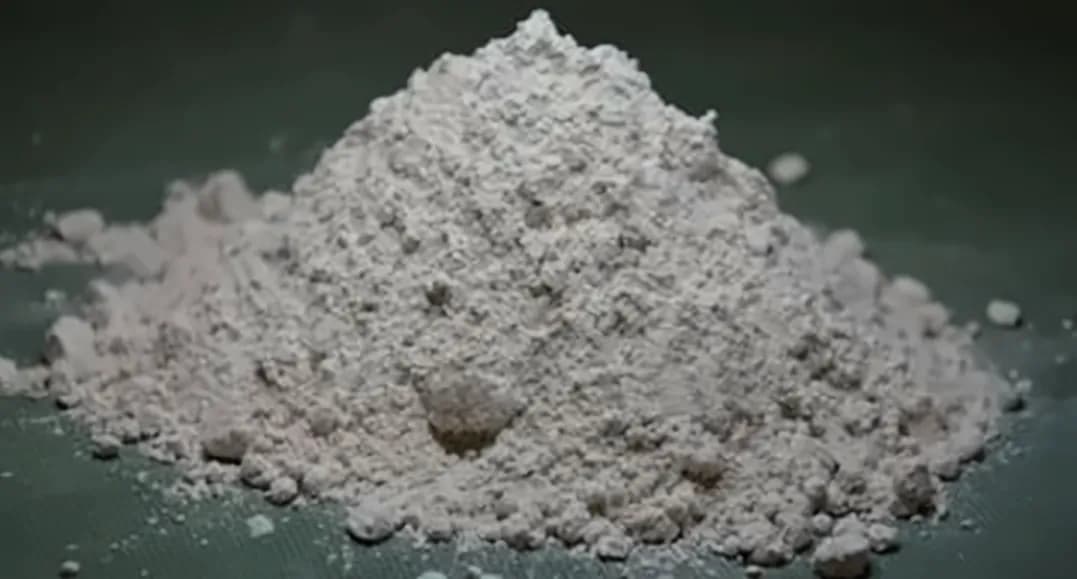

AKT-10
Filler for rubber goods, cable production and plastics, also used in tile manufacturing.
Also used in
- Household chemicals
- Resins and adhesives
Specification by grade
| Parameter | AKF-78 | AKS-30 | AKT-10 |
|---|---|---|---|
| Al₂O₃, % | 28–32 | 28–32 | 10–14 |
| Fe₂O₃, % | 0.4–0.8 | 0.5–0.8 | 0.3–1.0 |
| SiO₂, % | 47.0–55.0 | 52.0–55.0 | 73.0–87.0 |
| TiO₂, % | 0.45 | 0.45 | – |
| Moisture, % | 15–20 | 15–20 | 20 |
| pH | 7.0 | 7.5–8.4 | – |
| Whiteness R457, % | 78 | – | – |
| Loss on ignition, % | – | 11.9–12.3 | 4.5–6.0 |
| Dry bending strength, MPa | – | 0.8–1.0 | – |
| Wet sieve residue over 45 µm, % | 0.05 | 0.3–0.5 | – |
| Wet sieve residue over 250 µm, % | – | – | 0.02–0.4 |
Values achieved during enrichment, as published by the manufacturer. A dash means the parameter is not stated for that grade. Certificate of conformity UZ.SMT.01.001.1690720.
Production
From quarry to your warehouse in five controlled stages

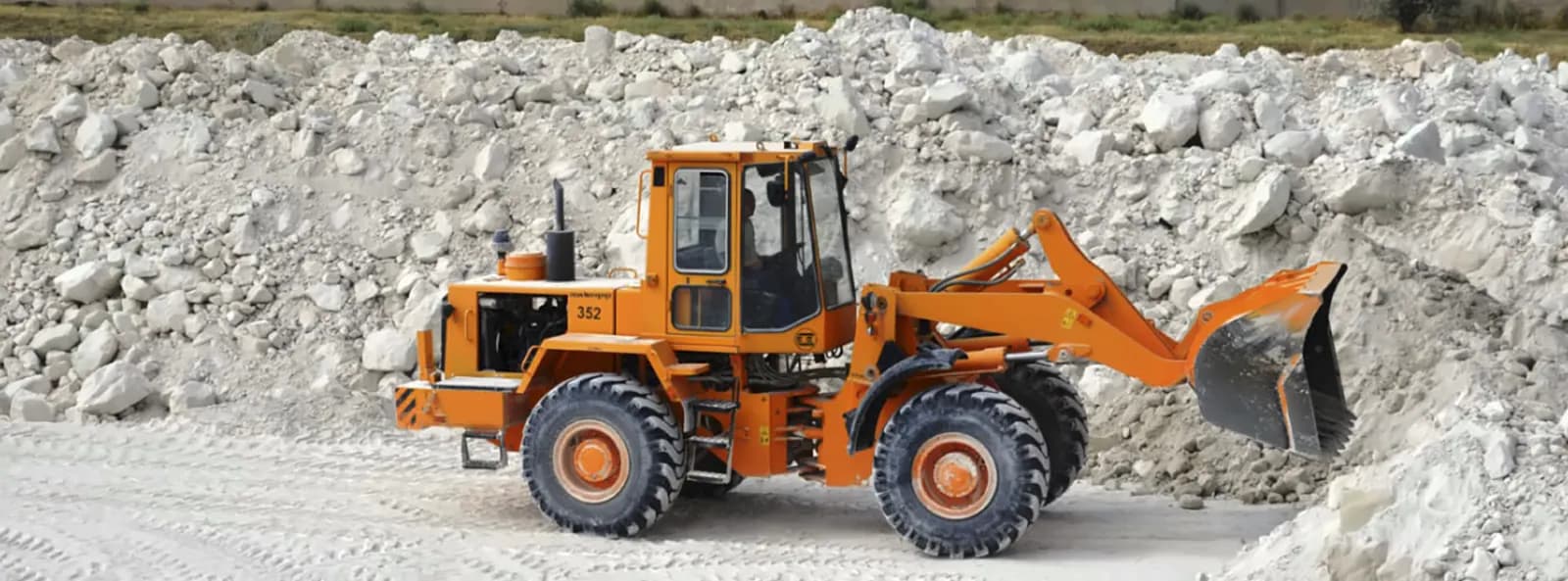

Raw material preparation
Selective extraction, transport and pre-processing of the raw kaolin.

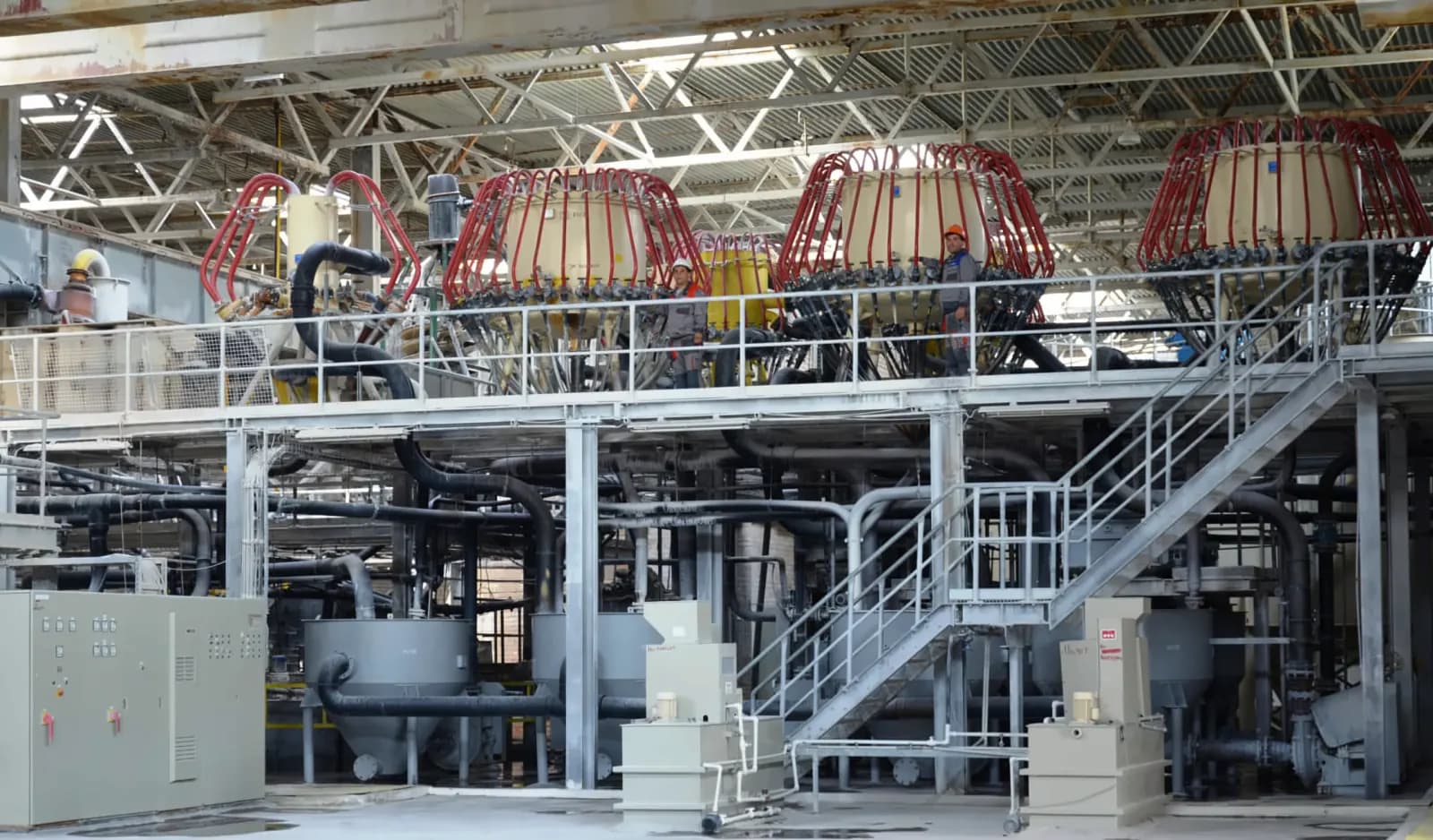

Wet enrichment
Wet cleaning and classification on modern filtration and separation systems.
Drying and forming
The product is dried and brought to the required parameters.
Quality control
Express analysis in the plant laboratory at every stage, then testing and certification.

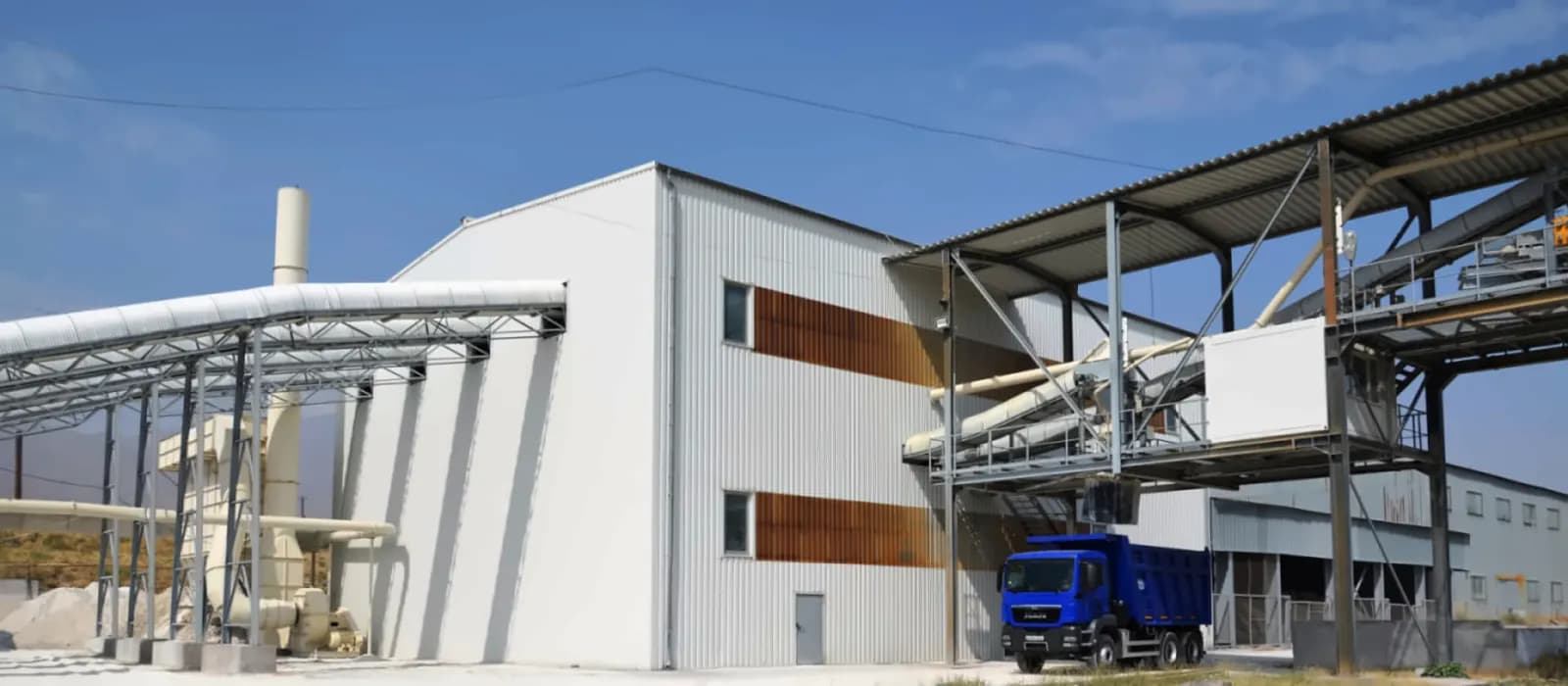

Packaging and logistics
Packed and shipped by truck or rail, or collected from the plant warehouse.
Quality
Consistency your process can rely on
ISO 9001:2008
The plant’s quality management system is certified.
Physico-chemical laboratory
Equipped with modern testing instruments for express analysis throughout the production process.
Automated production lines
Automation keeps processing accurate from run to run.
Certificate of conformity
All three grades are covered by certificate UZ.SMT.01.001.1690720.
Among our partners
- Roca Rus
- Kirovskaya Keramika
- Samarsky Stroyfarfor
- Ishimbay
Delivery
Four ways to receive your order
Rail
The cost-effective option for large shipments over long distances.
Truck
Direct delivery to your site on a schedule that suits you.
Self-pickup
Collect from the plant warehouse in Angren at a time convenient for you.
Export
Shipments to Central Asia and beyond with complete documentation support.
Raw material
Built on the Angren coal and kaolin deposit
5.8 bn t
Estimated total reserves of secondary kaolin at the Angren deposit, according to published research.
The Angren lignite basin is a complex coal and kaolin deposit. Alongside brown coal it holds large reserves of two types of kaolin clay, primary and secondary.
Angren Kaolin enriches this kaolin next to its source. Researchers have described grade AKF-78 as a promising raw material for electrical porcelain, pointing to its alumina content, fine dispersion and low content of colouring oxides.
Sources: E3S Web of Conferences, 2024 · Universum, 2018 · Universum, 2017
Contact
Request a quote
Tell us what you make and how much you need. Our sales team replies with an offer for your volume and destination.
